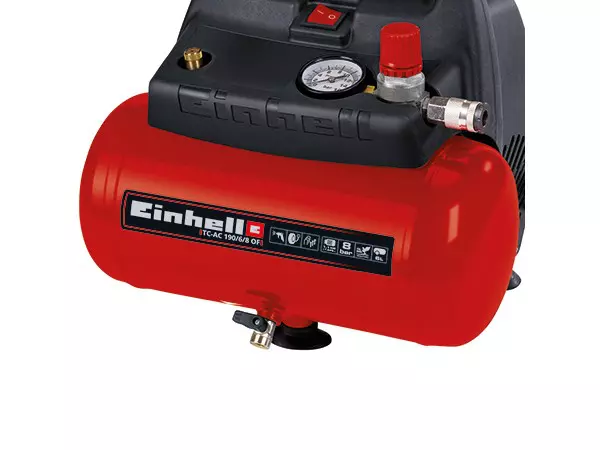

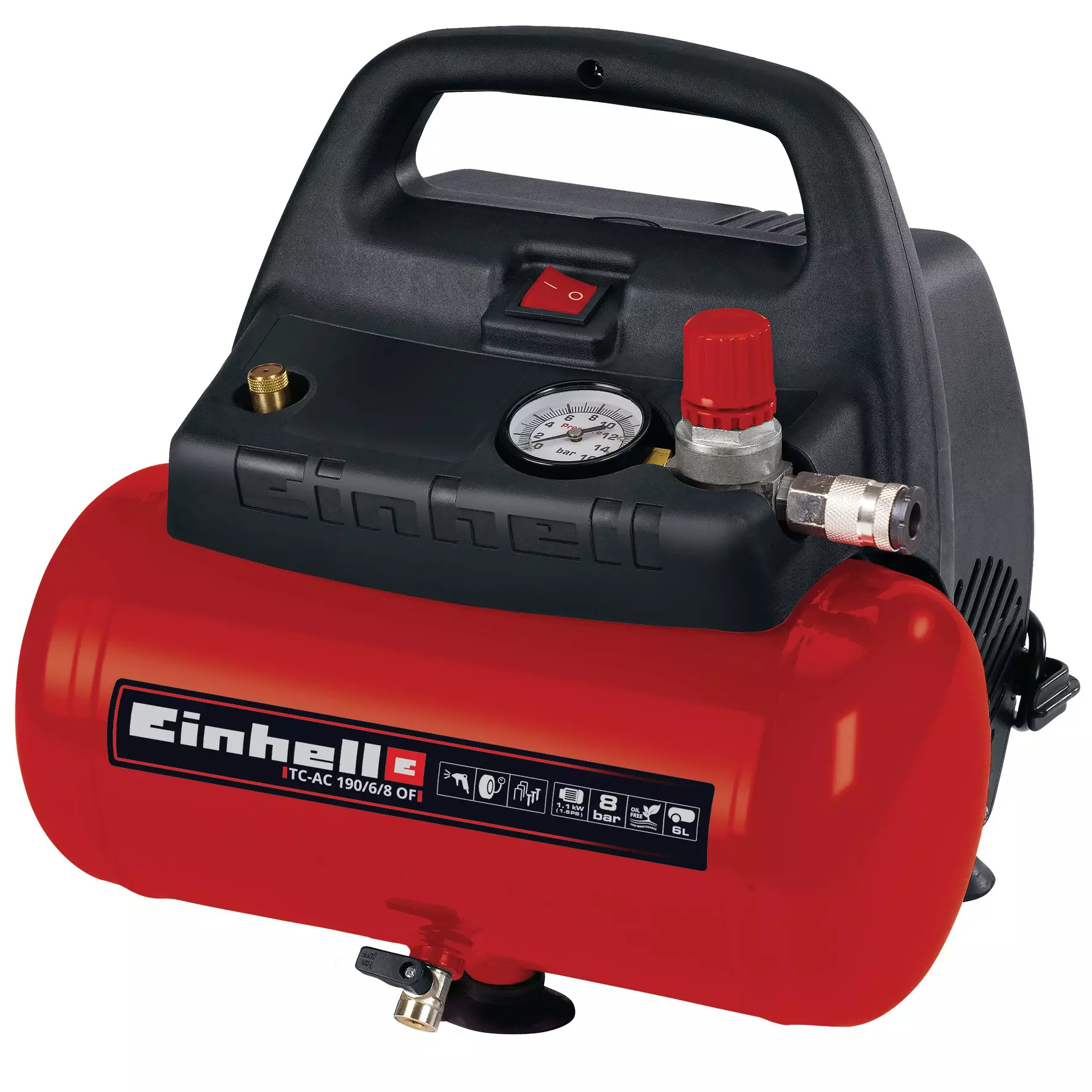

Air Compressor

TC-AC 190/6/8 OF

Item no.: 4020495 EAN: 4006825592184
  • Oil-free, service-free motor
  • Mobile compressor with compressed air storage

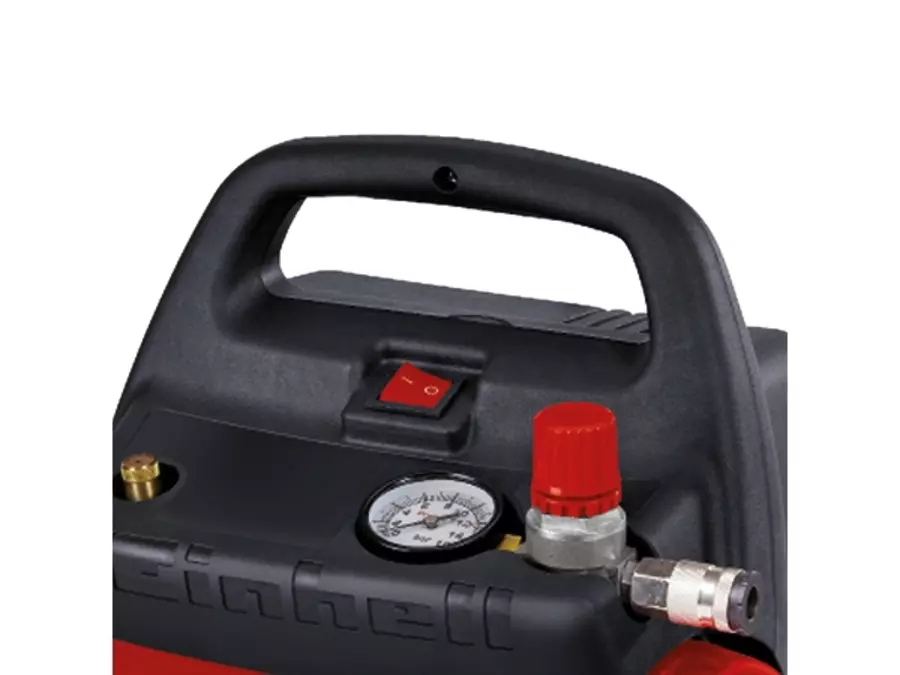

  • Ergonomic design for easy transport

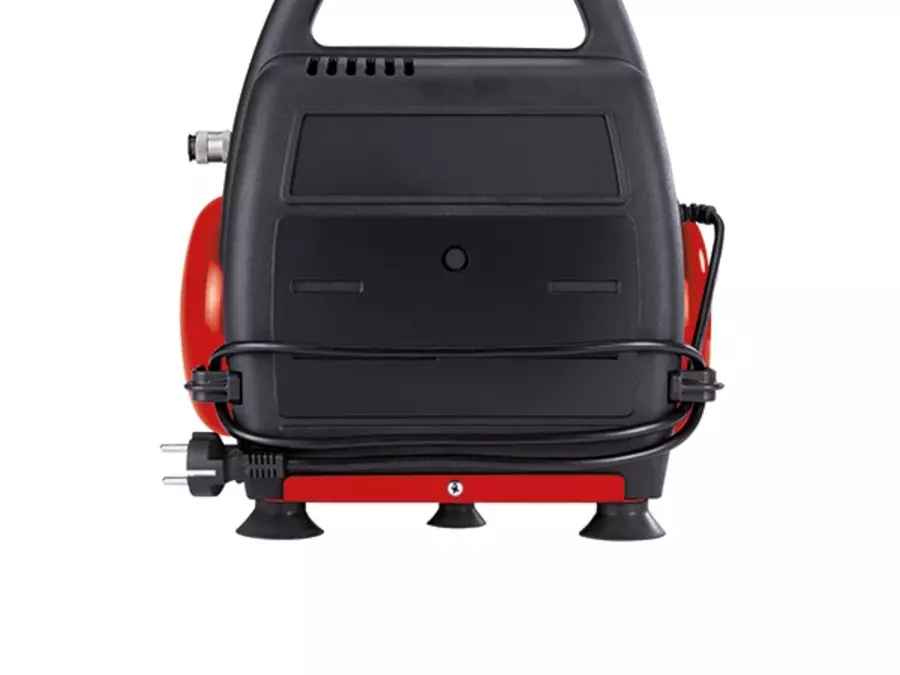

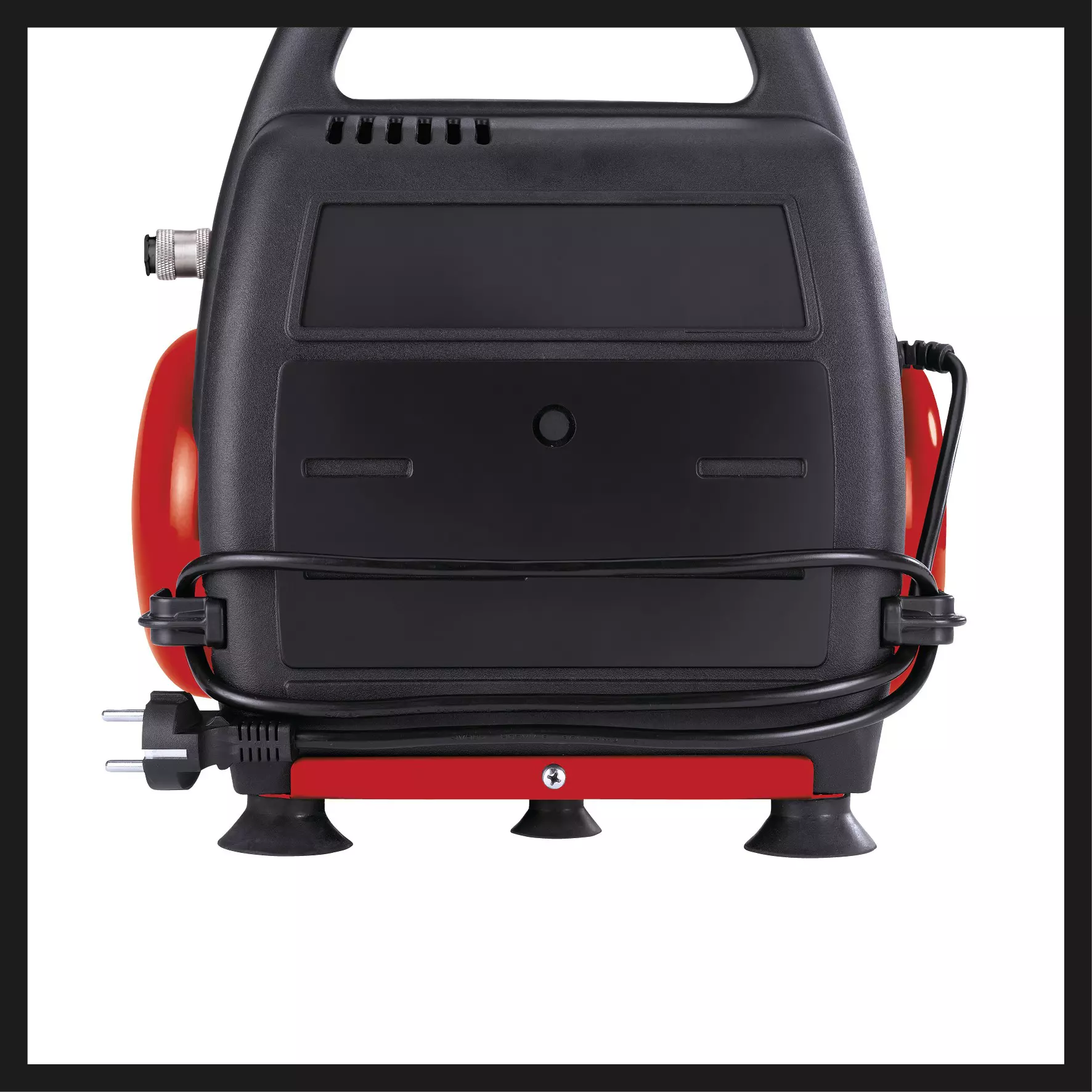

  • Practical cable winder at the back
  • Many applications up to 8 bar can be set by pressure regulator

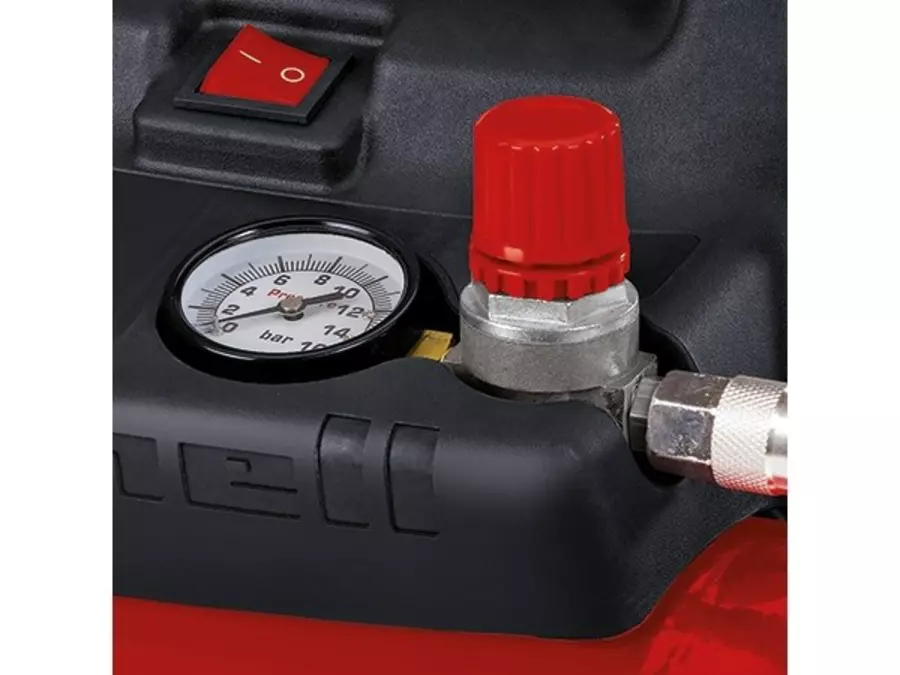

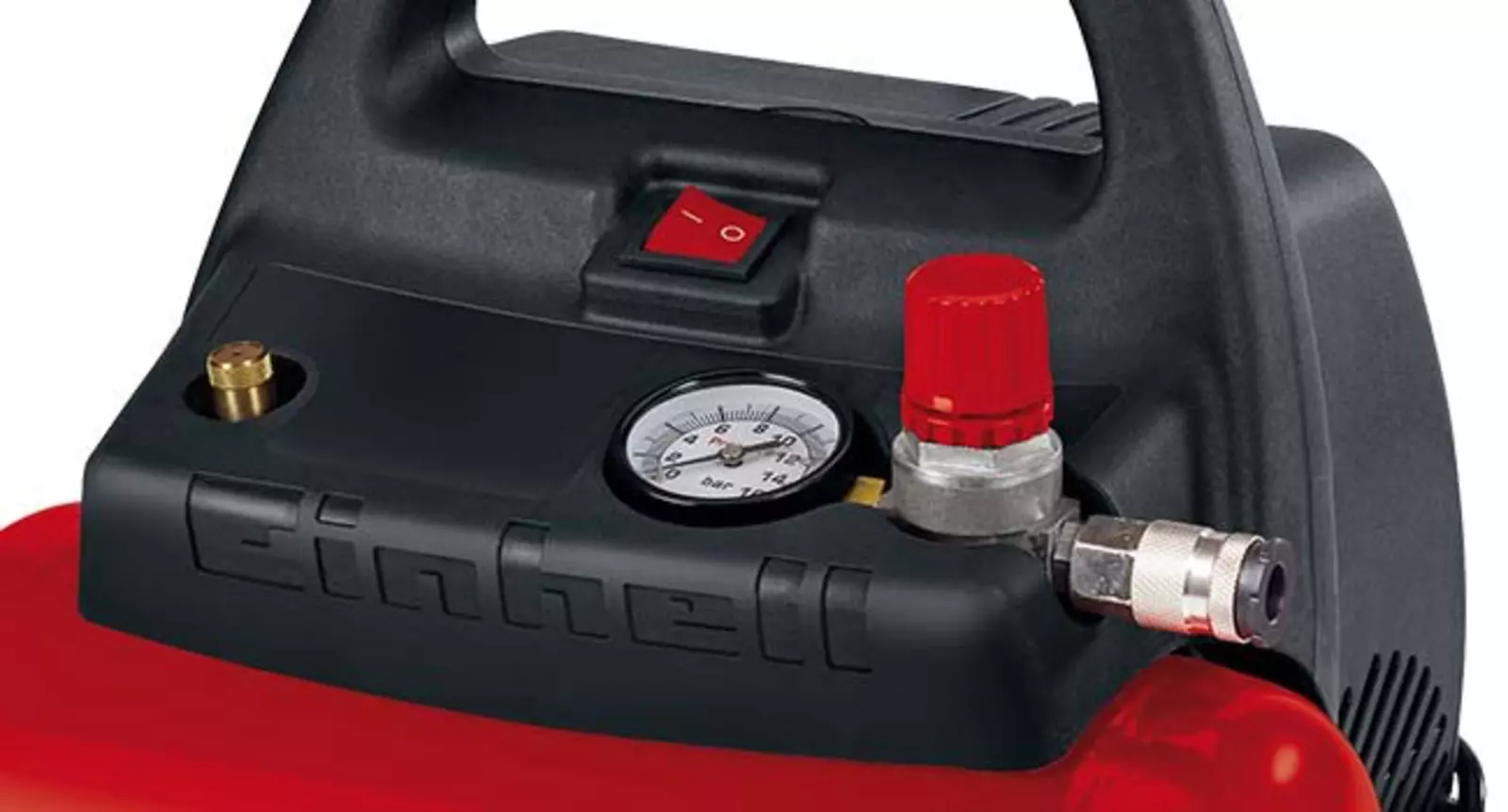

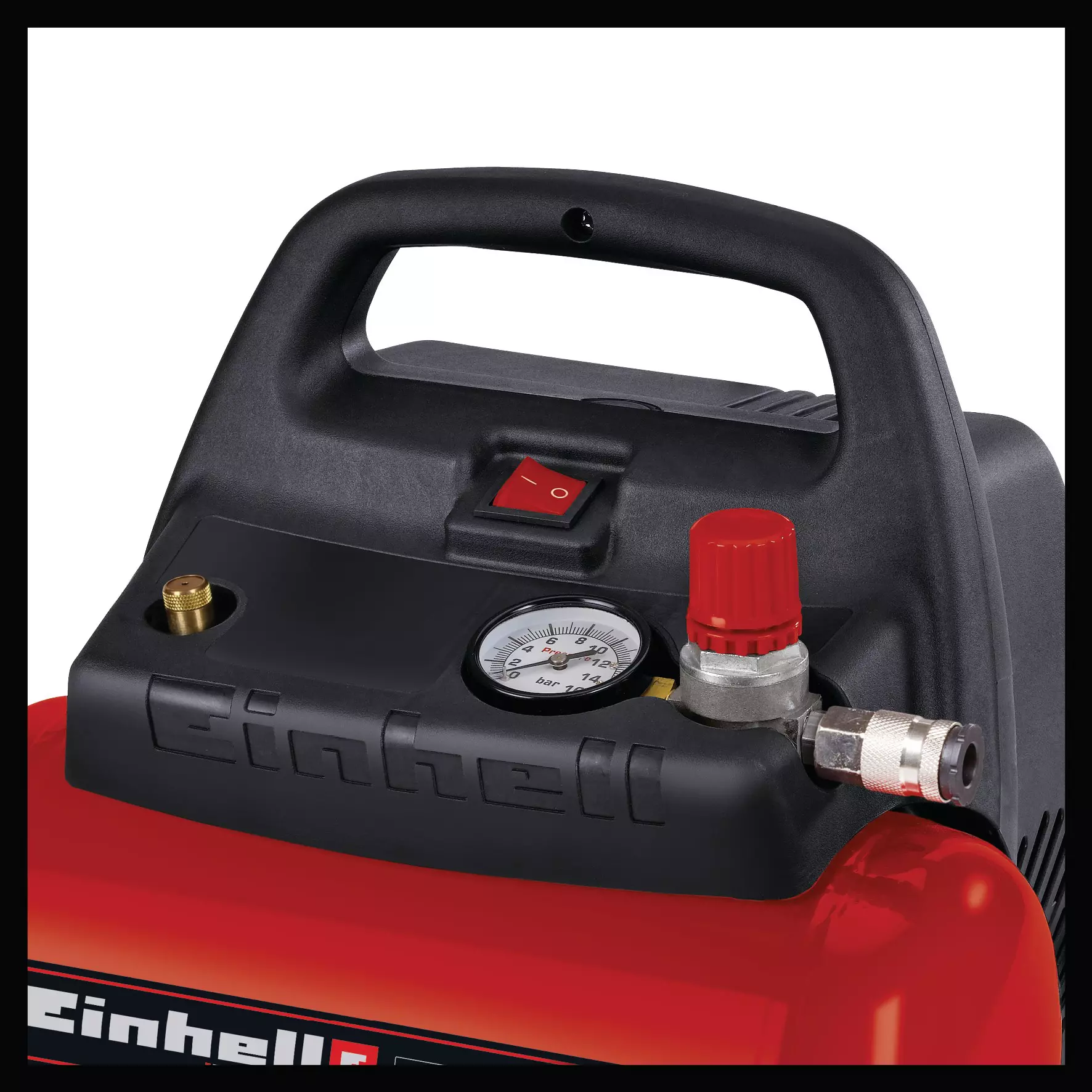

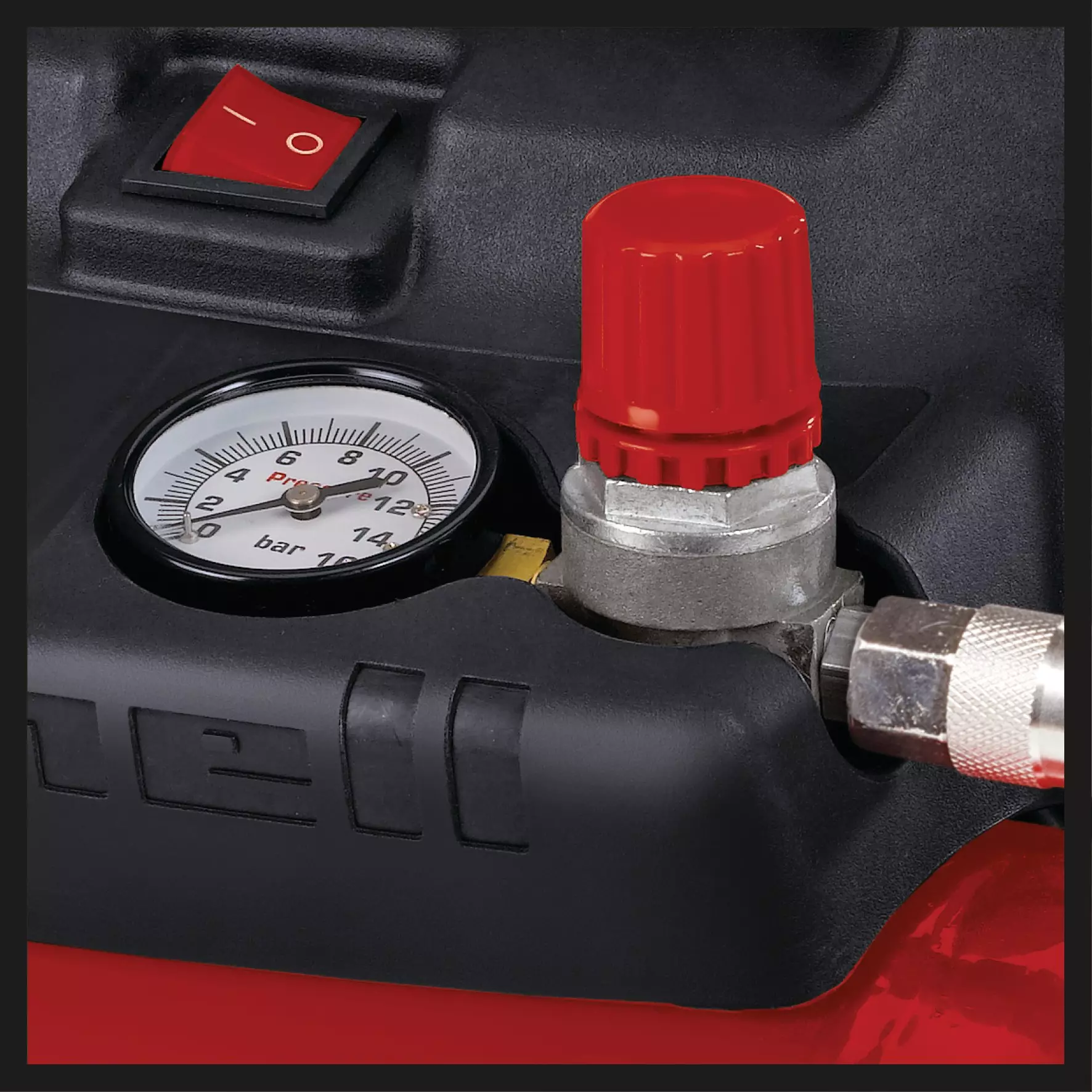

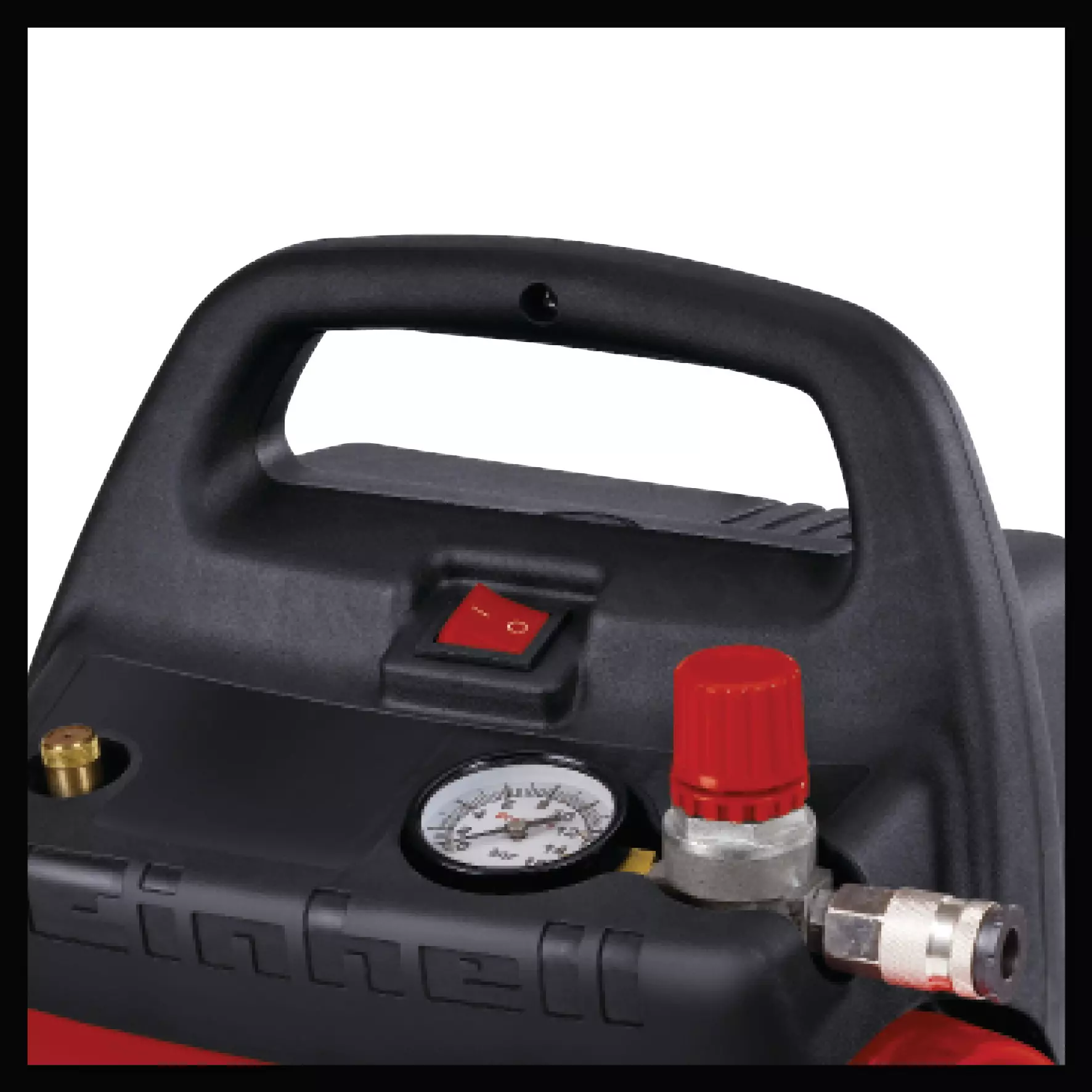

  • Pressure gauge/quick-release coupling for contr. working pressure
  • Support feets for safe stability
  • 10 year warranty against rusting through of the tank
  • Safety valve
See more information
Article description

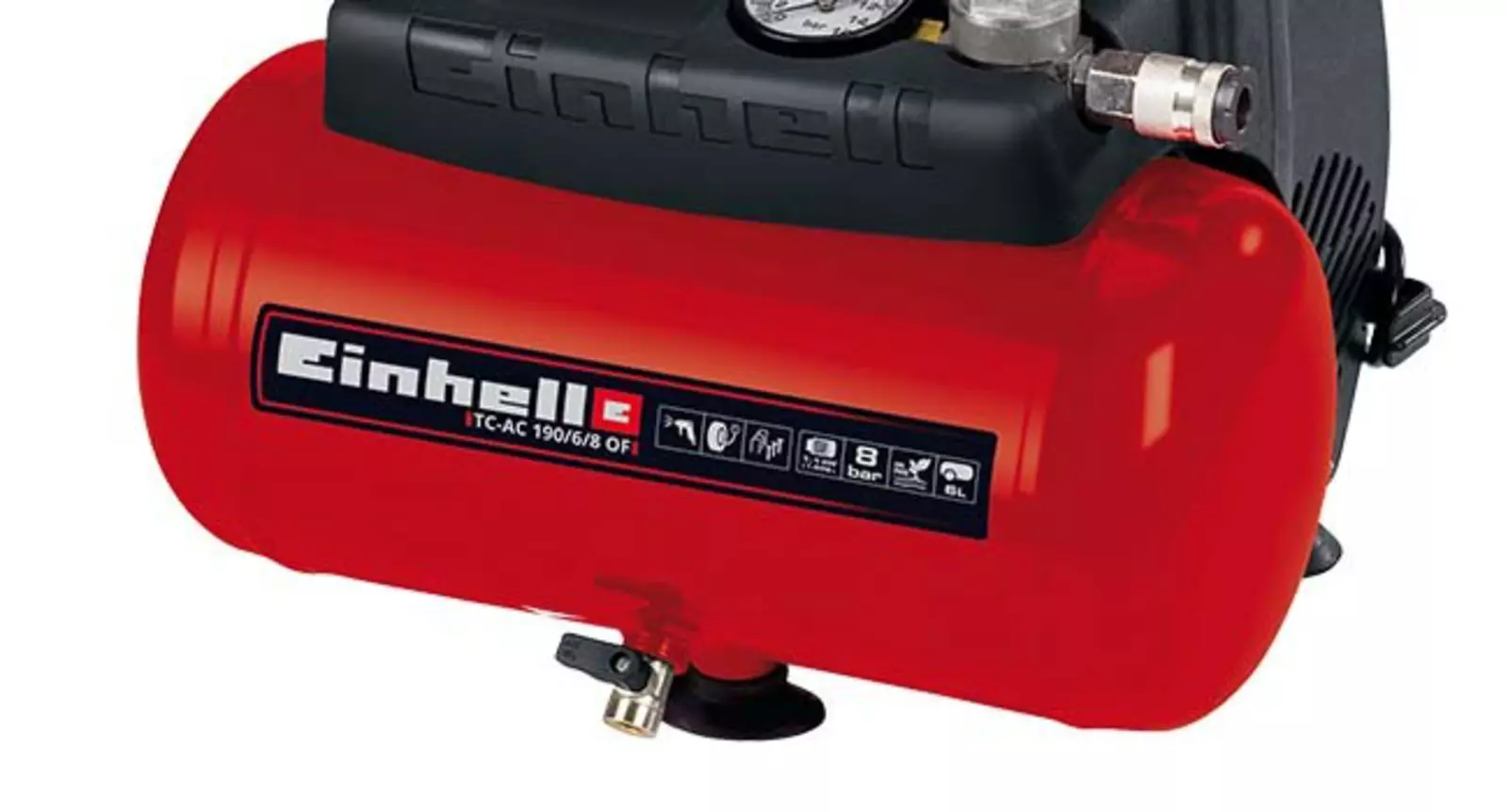

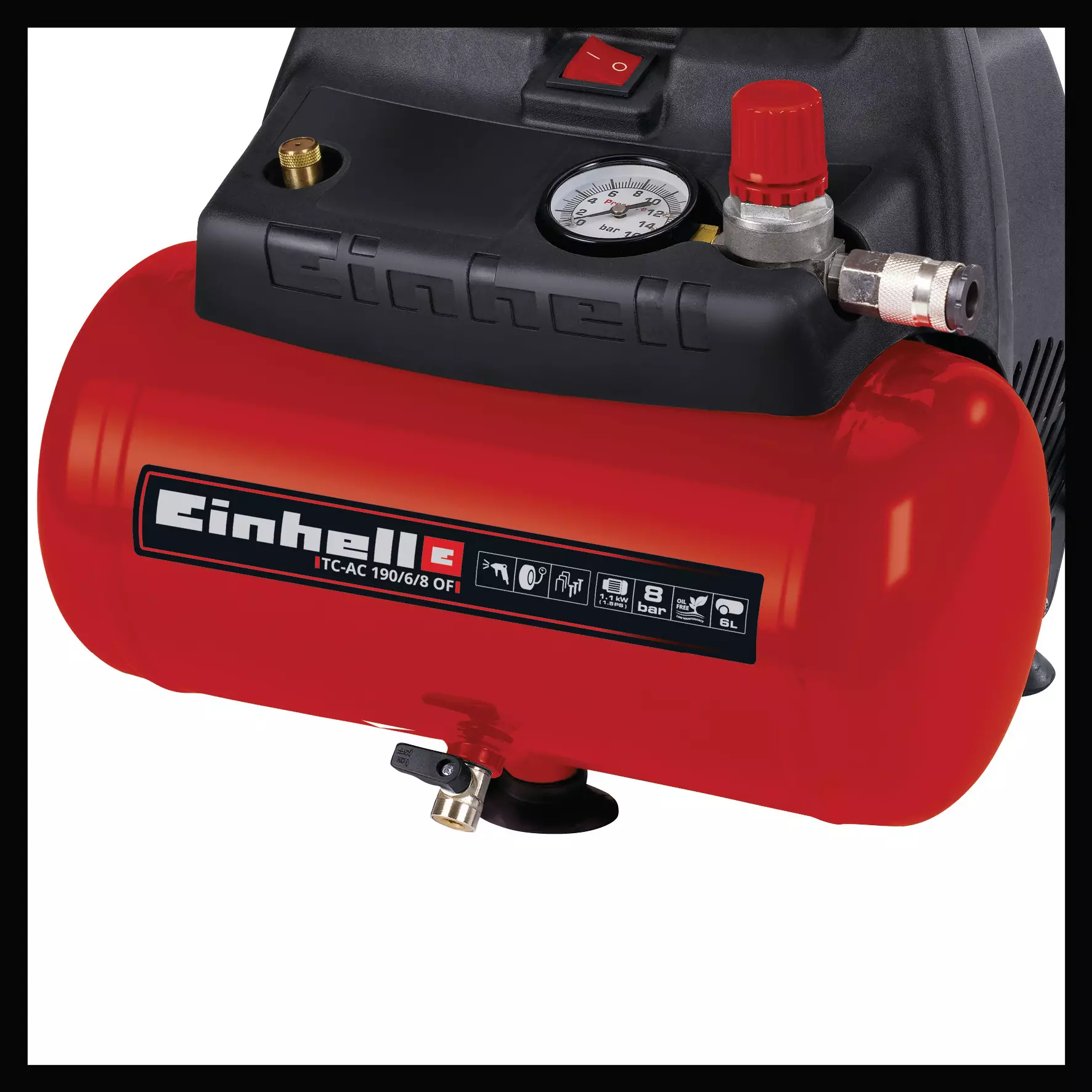

The TC-AC 190/6/8 OF is an extremely mobile and compact compressor with which you can quickly perform numerous simple compressed air jobs yourself in the home, garden and garage or while camping. Compressed air storage and a 6 liter tank enable small jobs to be performed without the motor starting up again. This air compressor works without lubrication and is therefore not only oil-free but also low in maintenance and easy to transport at any angle. With pressure regulation from 0 to 8 bar, the TC-AC 190/6/8 OF compressor can be variably adjusted to numerous applications. The controlled working pressure is regulated by a pressure reducer, indicated by a pressure gauge, and tapped through a quick-lock coupling. For the best possible user safety there is a safety valve. An ergonomic design enables optimum handling and easy transport. The foot with suction cup function contributes to safe operation, while the practical cable rewind quickly restores tidiness when work is completed. The solid, long-lasting tank comes with a 10-year guarantee against rusting through.

Technical details

Mains supply230 V | 50 Hz
Max. engine power (S3 | S3%)1100 W 1.5 PS 25 %
Pump speed3550 min^-1
Suction capacity185 L/min
Output power at 0 bar139 L/min
Output power at 4 bar77 L/min
Output power at 7 bar60 L/min
Max. operating pressure8 bar
Tank volume6 L
Number of cylinders1 Pieces
Sound pressure level; Lpa75 dB (A)
Sound power level; Lwa97 dB (A)
